1.概述
智能模組SS808系列是一款多網絡制式LTE Cat 4智能模組。 基于高通SDM450平臺設計，采用八核Cortex-A53處理器，1.8GHz主頻，搭載Android 9操作系統，內部集成高性能圖形引擎，可以流暢播放1080p視頻，支持雙屏顯示，支持多路攝像頭錄入。模組采用LCC+LGA 封裝，能夠與廣和通的SC138，SQ808，SU808系列兼容，便于客戶靈活開發終端設備。
SS808系列支持多種制式的遠距離通訊模式和雙頻Wi-Fi/BT近距離無線傳輸技術，支持GPS/GLONASS/Beidou等無線定位技術，增加定位準確度。SS808預置開放的Android操作系統，擁有MIPI/ USB/ UART/ SPI/ I2C等多種擴展接口，是無線智能產品核心系統的優選方案。
SS808系列智能模塊可廣泛應用于智能零售柜、智能收銀機、安防監控、車載設備、販賣機、物流柜等設備和行業。
2.技術規格
基本特性
| Package | 148 LCC+ 84 LGA |
| Processor | Qualcomm’s? SDM450, ARM? Cortex?-A53 8-core 64-bit CPU up to 1.8GHz, one quad with 512 KB L2 cache,one quad with 512 KB L2 cache |
| GPU | Adreno 506 |
| Memory(Default) | 2GB/4GB LPDDR3 RAM;16GB/64GB eMMC Flash |
| Dimensions (mm) | 41*41*2.8 |
| Frequency | LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41 WCDMA:B1/8 GSM:900/1800MHz |
| WiFi | 2.4G+5G, 802.11a/b/g/n/ac |
| BT | BT4.2 (BR/EDR+BLE) |
| GNSS | GPS/GLONASS/Beidou |
| OS | Android P |
| Power Supply | 3.5V～4.2V |
| Weight | About10.3g |
| Operating Temp | -30°C - +75°C |
| Storage Temp | -40°C ~ +85°C |
傳輸速率
| LTE FDD (Mbps) | Max 150(DL)/ 50(UL) |
| LTE TDD (Mbps) | Max 130(DL)/ 30(UL) |
| WCDMA (Mbps) | HSUPA Max 5.76(UL) HSPA+ Max 42(DL) |
| TD-SCDMA (Mbps) | Max 4.2(DL)/ 2.2 (UL) |
| CDMA2000 1X/EVDO (Mbps) | Max 3.1(DL)/Max 1.8(UL) |
| EDGE/GPRS(Kbps) | EDGE:Max 296(DL)/236.8(UL) GPRS:Max 107K(DL)/85.6(UL) |
| WIFI (Mbps) | up to 433 |
視頻處理
| Video Encode | 1080P@60fps (H.264/H.265/VP8) |
| Video Decode | 1080P@60fps (H.264/H.265/VP8/VP9) |
接口
| UART/SPI(Mbps) | 3 x UART Up to 4; SPI Up to 50 |
| I2C(Kbps) | Up to 400 for TP/Camera/Sensor |
| USB | 1 x USB2.0 high-speed interface, support USB OTG(Require 5V power supply) |
| SDIO | Support SD3.0 protocol; support 4 bit SD card |
| CAM | MIPI_CSI 4lane x 2(Up to 2.1G) MIPI_CSI 4lane x 1 (Up to 21Mp) |
| GPIO | 21 GPIOs |
| Display | 2 x 4-lane MIPI_DSI up to (1920x1200)@60fps |
| Speaker | 1 x Mono,differential 1W CLASS-D |
| Receiver | 1 x Mono, AB |
| Mic | 2 x analog microphones |
| Handset | 1x Stereo, single-ended output |
| USIM | 2 x SIM card,support dual-card, dual-standby |
| Keys | Power on/off /Volume up /Volume down /Reset |
| Advantages | 1、Octa-core A53 processor with up to 1.8GHz CPU Clock Speed 2、Support dual-LCD application |
| Applications | Smart Cash Register, Security Monitoring,Mobile POS terminal, Mobile computing，ECR, IVI, New Retailing |
認證
| Regulation | RoHS/CCC/SRRC |
| Operator | NA |
| Industry | NA |
* = 計劃/開發中

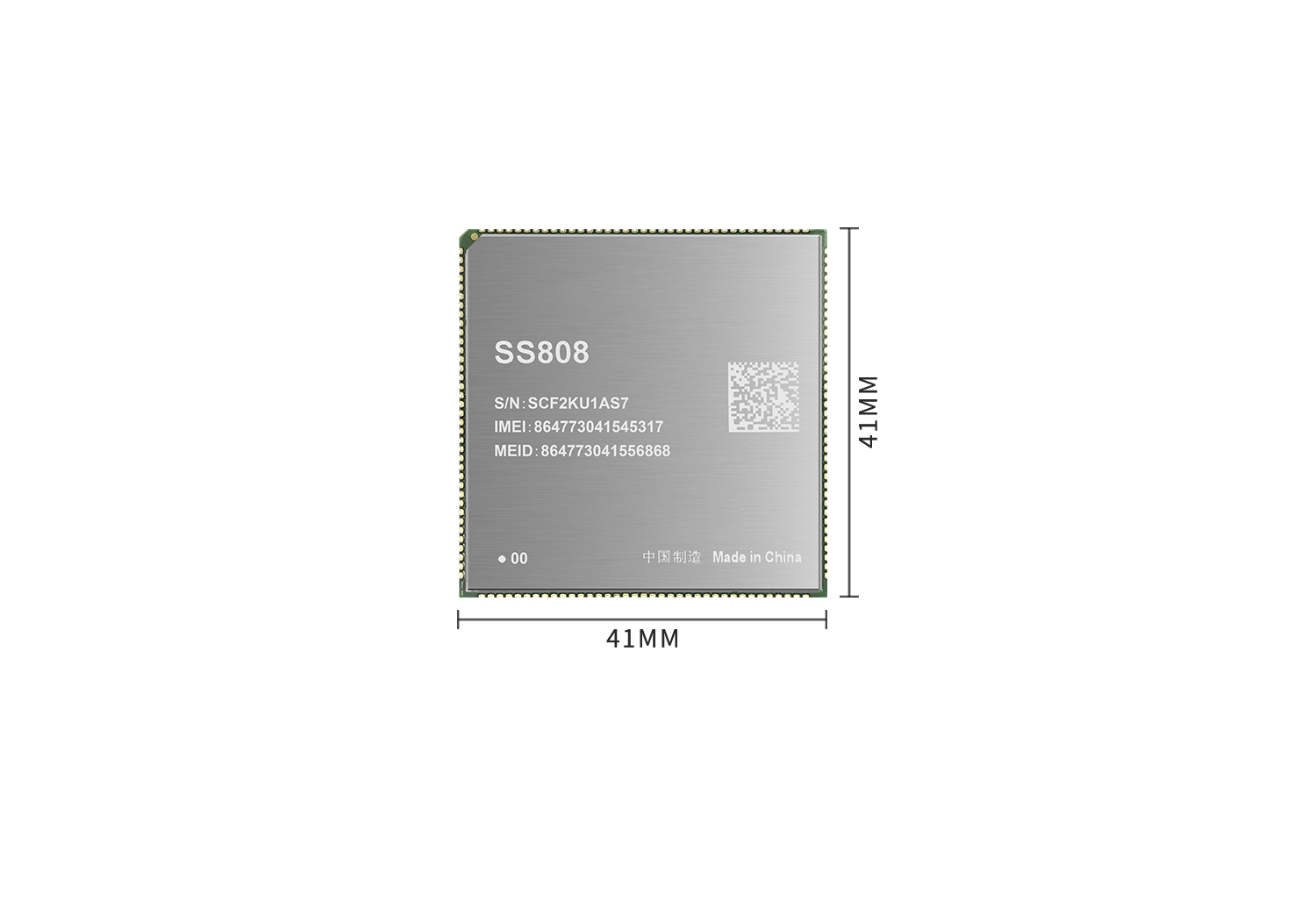

3.產品圖片
