1.概述
智能模組SC820是基于高通MSM8953平臺設計,具備8核 Cortex-A53處理器，2.0GHz主頻，內部集成高性能圖形引擎，可以流暢播放1080p視頻，支持雙屏顯示；支持7種制式的遠距離通訊模式和雙頻WIFI/BT近距離無線傳輸技術,支持GNSS無線定位技術。
智能模組SC820搭載開放的Android操作系統，擁有MIPI/USB/UART/SPI/I2C等多種擴展接口，是無線智能產品核心系統的優選方案。
2.技術規格
基本特性
| Package | 156 LCC+ 76 LGA |
| Processor | Qualcomm's? MSM8953, ARM? Cortex?-A53 8-core 64-bit CPU up to 2GHz, 4-core 1MB L2 cache, 4-core 512KB L2 |
| GPU | Adreno 506 |
| Memory(Default) | 2GB LPDDR3 RAM;16GB eMMC Flash |
| Dimensions (mm) | 43.5 x 45.0 x 2.85 |
| Frequency | LTE-FDD: B1/3/5/8 LTE-TDD: B34/38/39/40/41 WCDMA:B1/8 CDMA2000 1X/EVDO:BC0/EVDO Rev.A TD-SCDMA:B34/39 GSM: 900/1800MHz |
| WiFi | 2.4G+5G, 802.11a/b/g/n/ac |
| BT | BT2.1+EDR/3.0/4.2 LE |
| GNSS | GPS/GLONASS/Beidou |
| OS | Android N |
| Power Supply | DC 3.5V～4.35V |
| Weight | About 12.3g |
| Operating Temp | -30°C - +75°C |
| Storage Temp | -40°C ~ +85°C |
傳輸速率
| LTE FDD (Mbps) | Max 150(DL)/ 50(UL) |
| LTE TDD (Mbps) | Max 130(DL)/ 30(UL) |
| WCDMA (Mbps) | HSUPA Max 5.76(UL) HSPA+ Max 42(DL) |
| TD-SCDMA (Mbps) | Max 4.2(DL)/ 2.2 (UL) |
| CDMA2000 1X/EVDO (Mbps) | Max 3.1(DL)/Max 1.8(UL) |
| EDGE/GPRS(Kbps) | EDGE:Max 296(DL)/236.8(UL) GPRS:Max 107K(DL)/85.6(UL) |
| WIFI (Mbps) | up to 433 |
視頻處理
| Video Encode | 4K@30fps (HEVC/H.264/VP8/VP9/MPEG4/VC1) |
| Video Decode | 4K@30fps (HEVC/H.264/VP8/MPEG4/ SW VP9) |
接口
| UART/SPI(Mbps) | 3 x UART Up to 4;1 x SPI |
| I2C(Kbps) | Up to 400 for TP/Camera/Sensor |
| USB | 1 x USB3.0/2.0 high speed Support USB OTG(external 5V power supply) |
| SDIO | 1 x SDIO 3.0 |
| CAM | MIPI_CSI x 2 up to 2.1Gbps MIPI_CSI 4 lane x 1 (up to 24MP) MIPI_CSI 2 lane x 1 (up to 8MP) |
| GPIO | 25 GPIOs |
| Display | 2 x 4-lane MIPI_DSI up to (1920x1200)@60fps |
| Speaker | 1 x Mono,differential 1W CLASS-D |
| Receiver | 1 x Mono, AB |
| Mic | 2 x analog microphones |
| Handset | 1x Stereo, single-ended output |
| USIM | 2 x SIM card,support dual-SIM dual-standby(Default Single) |
| Keys | Power on/off /Volume up /Volume down /Reset |
| Advantages | 1、Octa-core A53 processor with up to 2.0 GHz CPU Clock Speed 2、Android Nougat 3、Long-term lifecycle supply guarantee |
| Applications | Automotive aftermarket, High-end Police or Law Enforcement Equipment |
認證
| Regulation | RoHS/CCC |
| Operator | NA |
| Industry | NA |
* = 計劃/開發中

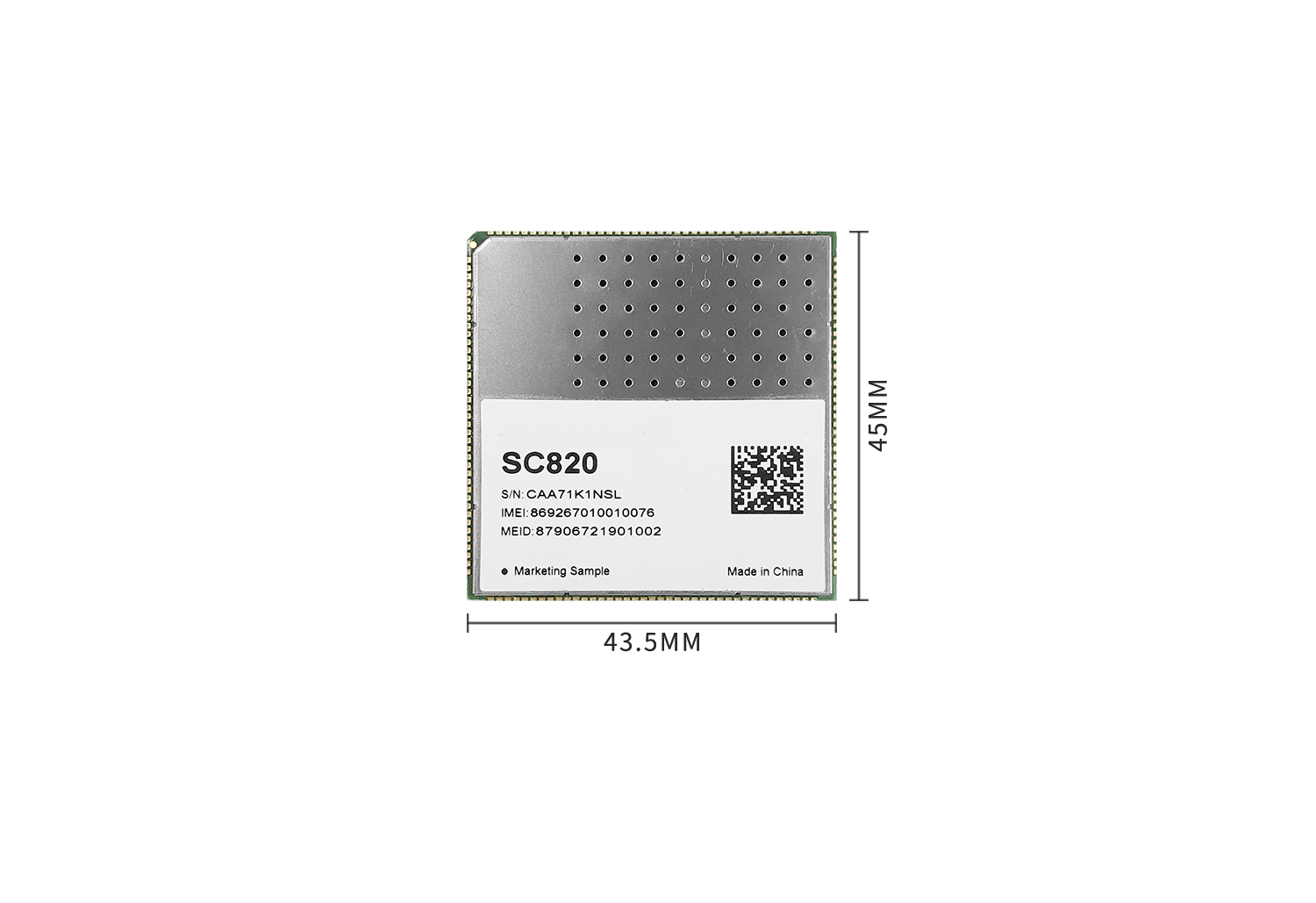

3.產品圖片
